Belimo All Products

CCV/PICCV valve neck extension kit

Damper clip for damper blade, 3.5” width.

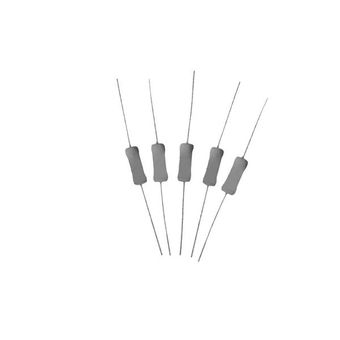

Resistor, to convert a 4...20 mA signal into a 2...10 V control signal

Shaft clamp reversible, for central mounting, for damper shafts Ø12.7 / 19.0 / 25.4 mm

Shaft extension for ½” diameter shafts (3.8” L).

Ball joint suitable for damper crank arm KH8

Ball joint suitable for damper crank arm KH8

Damper clip for damper blade, 6” width.

Shaft extension for ⅜” diameter shafts (4” L).

Ball joint suitable for damper crank arm KH8 / KH10

Mounting Bracket: GM,AM,SM

Push rod for KG6 \& KG8 ball joints (36” L, 5/16” diameter).

Shaft extension for ½” diameter shafts (5” L).

Push rod for KG10A ball joint (36” L, ⅜” diameter).

CCV/PICCV valve neck extension kit

Damper crank arm Slot width 8.2 mm, for Ø1.05”

AFB/NFB mounting brackets

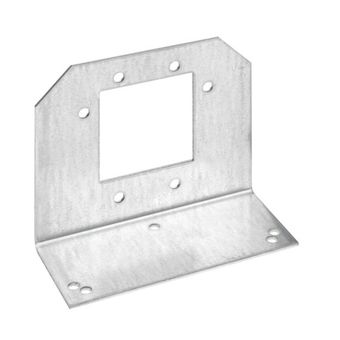

TFB(X) crankarm adaptor kit (includes ZG-113).

Anti-rotation bracket TF/NKQ/AM/NM/LM.

LF crankarm adaptor kit (includes ZG-112).

Shaft clamp reversible, clamping range Ø16...20 mm

Shaft clamp reversible, clamping range Ø12...26.7 mm

Actuator arm, clamping range Ø8...16 mm, Slot width 8.2 mm

LF crankarm adaptor kit (T bracket included).

TFB(X) Mounting Hardware without bracket

Shaft extension 240 mm Ø20 mm for damper shaft Ø 8...22.7 mm

Retrofit clip, for NF..A / SF..A

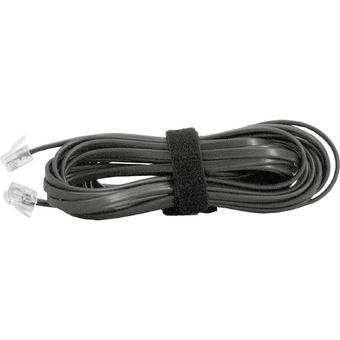

Connection cable 16 ft [5 m], A: RJ11 6/4 ZTH EU, B: free wire end for connection to MP/PP terminal

Standard GK/GM clamp (½” to 1.05”).

LF right angle bracket 4-½x5-½x2-½” (HxWxD).

Anti-rotation bracket LF.

Damper crank arm Slot width 8.2 mm, clamping range Ø10...18 mm

Dual actuator mounting bracket.

Shaft extension for ½” diameter shafts (3” L).

Shaft extension 170 mm Ø10 mm for damper shaft Ø 6...16 mm

Damper crank arm, Slot width 6.2 mm

Anti-rotation bracket, for AF / NF

Wrench 13 mm

Pressure measuring stick for VAV RetrofitFor round boxes up to 16” [400 mm], Unit with diff. pressure pick-up device with seal, Multipack 18 pcs.

Transformer, AC 120 V to AC 24 V, 40 VA

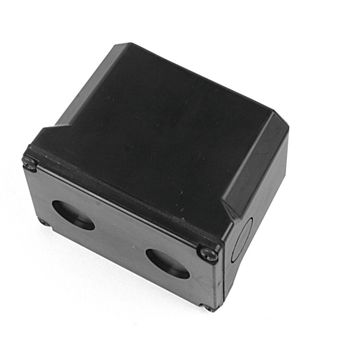

Electrical junction box for LF.

Mounting Bracket: AF,NF,LF,GM,AM,NM,SM

17” Mounting Bracket for AF,NF,GM,AM,SM

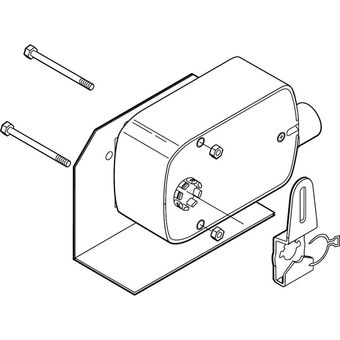

Honeywell ECON retrofit kit without module bracket.

Jackshaft mounting bracket.

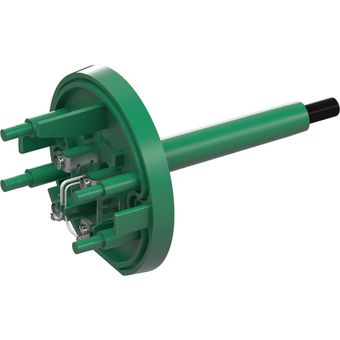

Spare tripping element for BAE, duct inside temperature 95 deg. C, Probe length 2.6” [65 mm]

Mounting Bracket: GM,AM,SM

Mounting kit for linkage operation for flat installation

Fixing bracket for 6-way valve DN 15/20

Spare tripping element for BAE, Duct inside temperature 72 deg. C (color black), Probe length 2.6” [65 mm]

Connection cable 16 ft [5 m], A+B: RJ12 6/6

Actuator arm Slot width 8.2 mm

Classic AF/NF crankarm for Jackshaft to 1.05”.

Resistor kit, for -MFT95 actuator in 0...135 Ω control application

Standard LF clamp (⅜” to ½”).

Bracket for LF..

Shaft clamp for AF..

Right angle bracket for NMB(X).

TFB(X) right angle bracket 4-½x5-½x2-½” (HxWxD).

Base plate, for ZS-100
